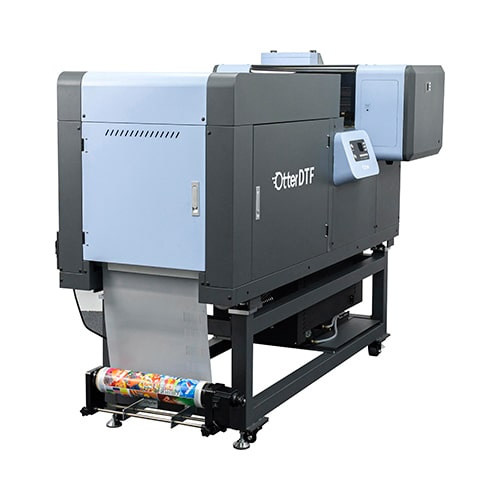

Otter DTF 40 multifunctional system
- Otter DTF 40 multifunctional system
Are you buying a lot?
Check out our advantageous wholesale offer
PRODUCT DESCRIPTION

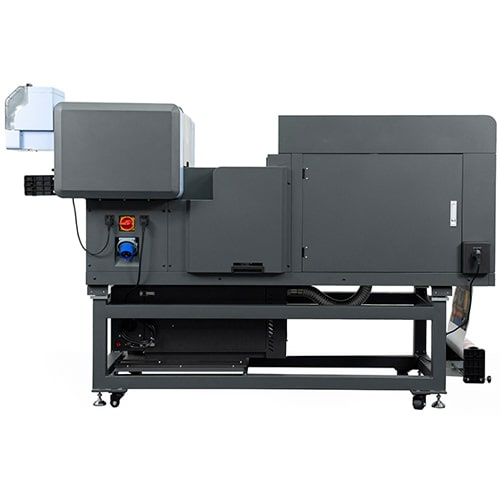

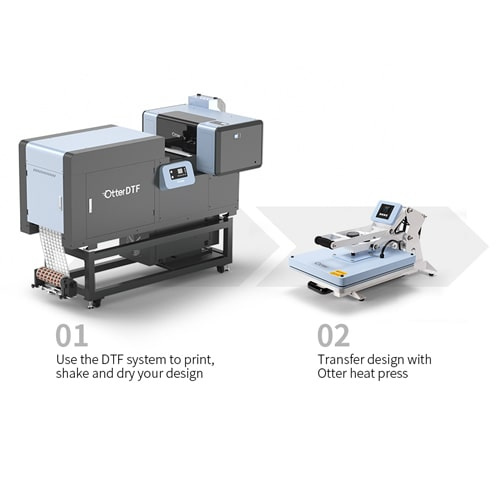

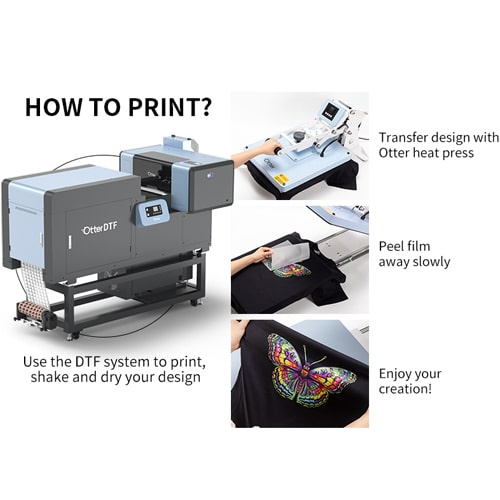

The Otter DTF 40 multifunctional system. The system combines printing, powder shaking, curing and purification functions to deliver performance and quality in a compact package. Fully automated functions streamline the workflow for high productivity and peak performance.

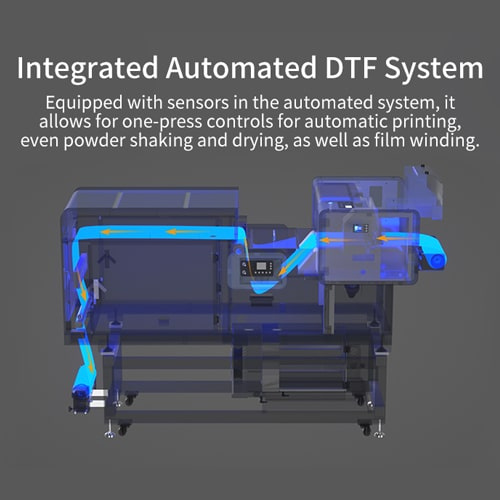

All-in-one DTF system”:
- printing

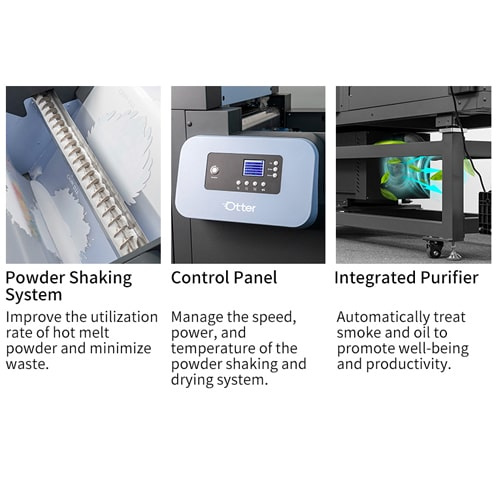

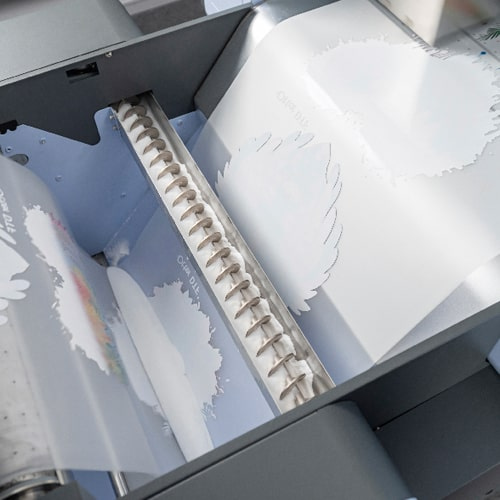

- powder shaking system
- drying system

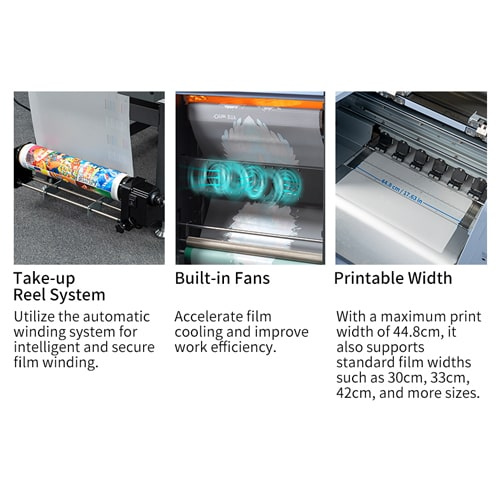

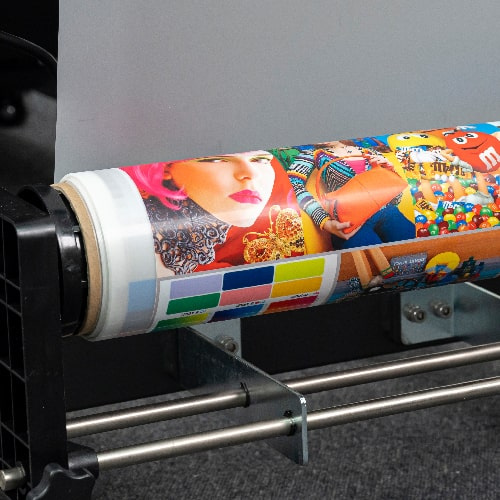

- the collection drum system

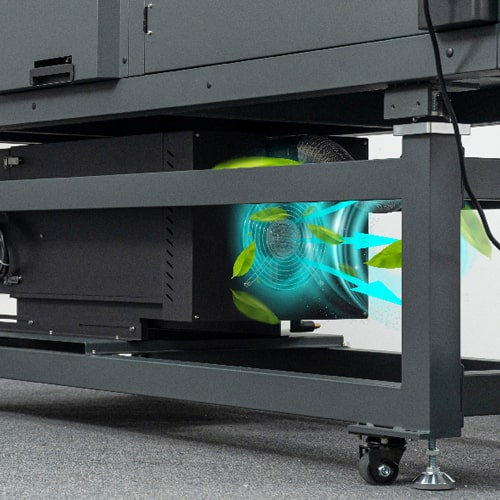

- built-in fans
- built-in cleaning

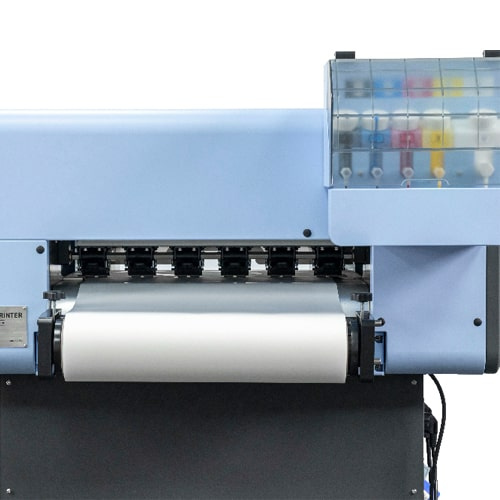

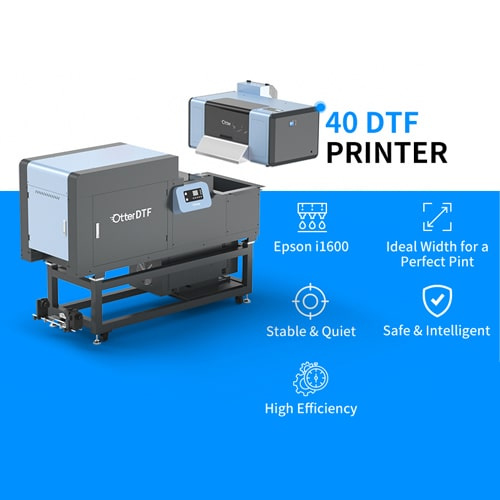

Printer 40 DTF:

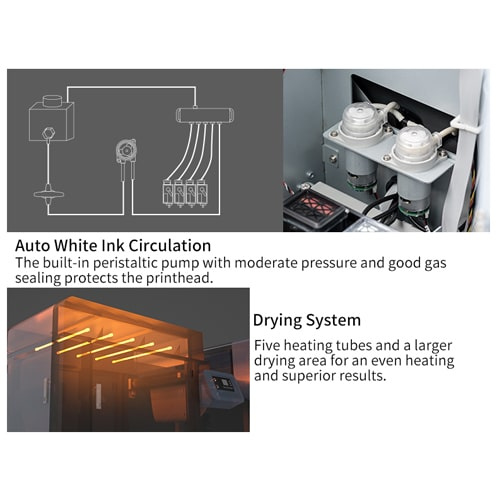

- automatic white ink circulation

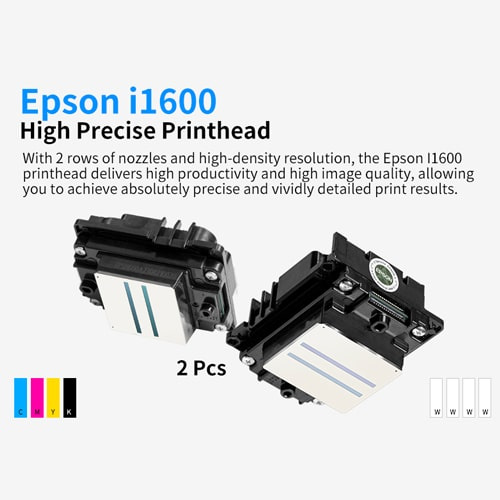

- precision printhead (Epson i1600)

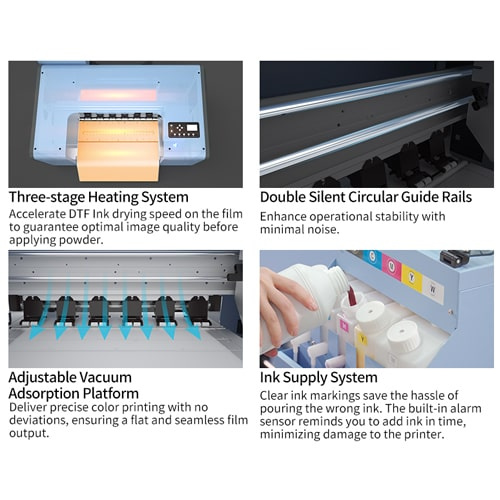

- three-stage heating system
- double silent circular guide rails
- adjustable vacuum adsorption platform

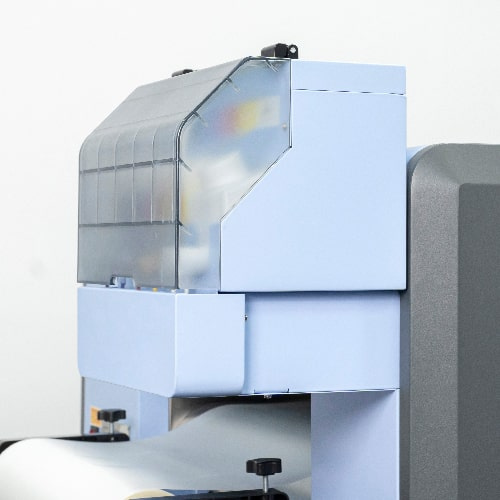

- ink supply system

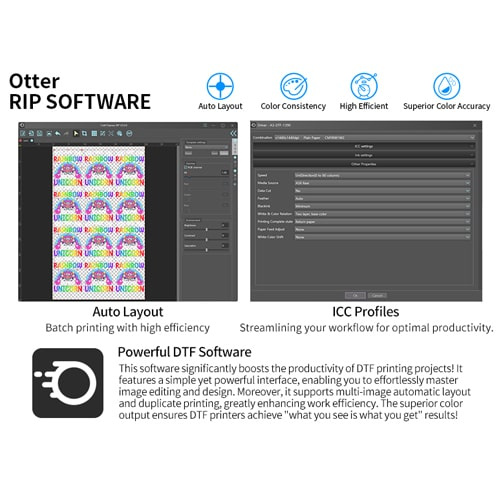

Otter RIP software included. This software significantly increases the productivity of DTF printing projects! It has a simple but powerful interface, enabling you to master image editing and design effortlessly. What's more, it supports automatic multi-image layout and duplicate printing, which significantly increases productivity. Excellent colour output ensures that DTF printers achieve 'what you see' results.
Technical data
- Printhead: Epson i1600, 2 pcs.
- Nozzle resolution: 300 dpi 600 dpi
- Maximum print width: 448 mm /17.6 inches
- Prędkość drukowania:
- 720 x 1200 dpi (4 runs): 3,5–5,0 m²/h
- 720 x 1800 dpi (6 runs): 2,5–3,5 m²/h
- 720 x 2400 dpi (8 runs): 2,0–3,0 m²/h
- Printer software: Otter DTF 40
- Design software: Otter DTF RIP
- System: Window7 (IOS is not yet supported)
- Supported white colour printing: tak
- Mixing white ink: tak
- Operating temperature: 15-30℃, humidity 35-65% (without condensation)
- Supported formats: PRT, PRN,BMP, JPG, PNG, TIFF, EPS, PDF

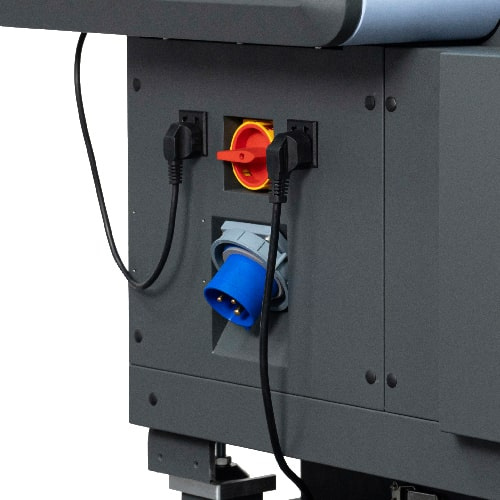

- Voltage: 110 V-220 V 50 Hz-60 Hz
- Power: 2800 W ±5%
- Weight: 285 kg
Otter DTF Product Warranty
The warranty document in PDF format is available for download here.
