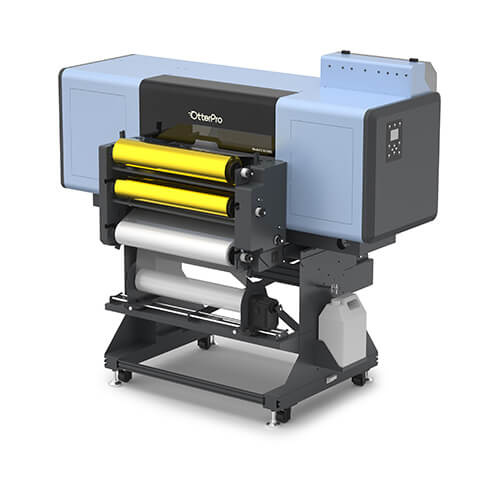

OtterPro Model C 60 Pro UV DTF printer with four Epson i1600-E1 heads
- OtterPro Model C 60 Pro UV DTF printer with four Epson i1600-E1 heads
OtterPro Model C 60 Pro UV DTF
Dual mode UV DTF Clear printing - UV DTF stickers + UV DTF metallic film
Epson i1600-E1
4 print heads: KCMY+white+varnish
Printing width
0 - 620 mm / 0 - 24.4"
Alarm system
Low ink alarms, detection of missing film
Automatic system
White ink mixing, suction system, automatic cleaning, adjustable heating rollers
Why choose the C 60 Pro model?
The C 60 Pro is an upgraded version of the C 60 model, distinguished by a stunning metallic foil print that allows you to create intricate, eye-catching patterns with shine - perfect for branding, packaging and more.
- Scratch resistance
- 3D relief effect
- No additional cutting machine needed
- No heat press required
- No minimum order
- No restrictions on colors
- WYSIWYG
Gift wrapping
Small expenditures
Personalization of gadgets
Retail packaging
3D relief effect
Epson i1600-E1
Thanks to Epson's original multi-head design, the device effortlessly creates 3D relief and texture effects on both soft and hard substrates.
Intelligent automatic system
Features automatic cleaning, self-maintenance, warns of low ink levels and detects when film is missing.
Silenced guide rail
Silenced guide rail is a guarantee of high precision and stable operation with minimal noise.
Three-stage suction platform
Three-stage adjustable suction platform securely holds transparencies in place, ensuring smooth, flawless prints every time, and preventing printhead scratches from film contact.
Adjustable heating rollers
Provide precise and even heat distribution for a bubble-free laminating effect.
Leadshine stepper motor
Advanced, high-quality motor ensures smooth, precise and stable movement during your projects.
Premium components
Surface and printing platform with corrosion-resistant coating for greater durability; integrated LED lighting; base frame has specially designed cutouts for easy machine handling.
Adjustable, automatic mixing of white ink
Prevents white ink precipitation, minimizes the risk of printer clogging and extends the life of the UV DTF printer.
Otter RIP Software
Automatic system
Color consistency
High performance
Excellent color accuracy
This software significantly increases the productivity of DTF printing projects! It has a simple but powerful interface, allowing you to effortlessly master image editing and design. What's more, it supports automatic layout of multiple images and duplicate printing, which greatly increases productivity. Superior color printing ensures that DTF printers achieve "what you see" results!
Automatic stacking
Customized ICC profiles
Multilingual system
Examples of applications
Stickers can be applied to wood, metal, plastic, glass, acrylic, paper and almost any smooth, hard, cylindrical object.
UV DTF
Metallic Foli UV DTF
Specification
- Printhead: EPSON I1600 E1 X3/4
- Nozzle resolution: 300NPI 600NPI
- Print speed:
- 960 x 900 dpi 6 passes - 3.5 - 5 m/ hr.
- 960 x 1200 dpi 8 pass - 2.5 - 3.5 m/ hr.
- Power supply:220 V ± 10% 50 Hz-60 Hz
- Power: 330W 5A-10A
- Work environment:
- Temperature: 15-30°C
- Humidity: 35-65% (non-condensing)
- Printer software:Otterpro C 60 UV DTF
- Language options (control panel):
- english
- chinese
- Design Software: Otterpro RIP
- Language options (software):
- english
- chinese
- french
- german
- italian
- polish
- portuguese
- spanish
- Ink type: UV DTF
- Ink color:
- H1: G+G+G+G H2: W+W+W+W
- H3: K+C+M+Y H4 V+V+GV+GV
- Printing method: complete hierarchical printing using white ink, color and varnish
- Ink blending system: automatic for white ink
- Head maintenance: automatic cleaning, ink removal, humidification
- Heating system: adjustable heating rollers
- Connection method:Ethernet Gabit port (The computer must have a Gigabit Ethernet card)
- Inspection system: low ink level, no film
- System requirements:Windows 7 or later (macOS is not supported)
- Supported formats: BMP, JPG, PNG, TIFF, TIF, PDF
- Print thickness:0 - 3 mm
- Print width: 0-620 mm / 0-24.4 inches
- Dimensions: 170 x 107 x 154 cm
- Weight: 280 kg
- Warranty:The UV DTF printer comes with a 2-year limited warranty. In addition, parts that come into contact with ink, including ink cartridges, print heads, wiper blades and other consumable parts are not covered by the warranty.
