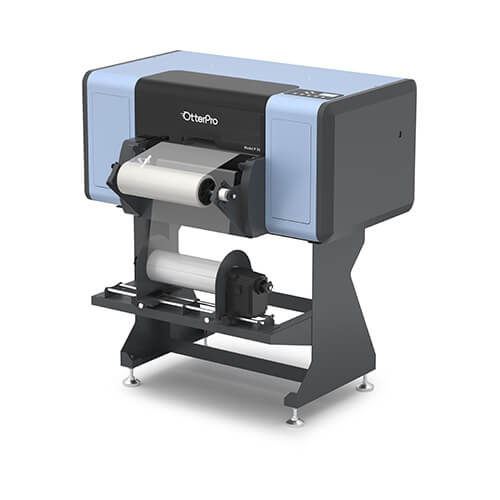

OtterPro Model P 30 PUFF UV DTF Printer with One Epson i1600-E1 Printhead

Epson i3200-U1 HD

1 piece

Printing width

0 - 300 mm / 0 - 11.8"

Alarm system

Low ink alarms, detection of missing film

Automatic system

White ink mixing, suction system, automatic cleaning, adjustable heating rollers

3D relief effect

Epson i1600-E1

Thanks to Epson's original multi-head design, the device effortlessly creates 3D relief and texture effects on both soft and hard substrates.

High resolution

compatible with Epson i3200 U1 print head with a resolution of 600 dpi , guarantees accurate color reproduction and high quality prints.

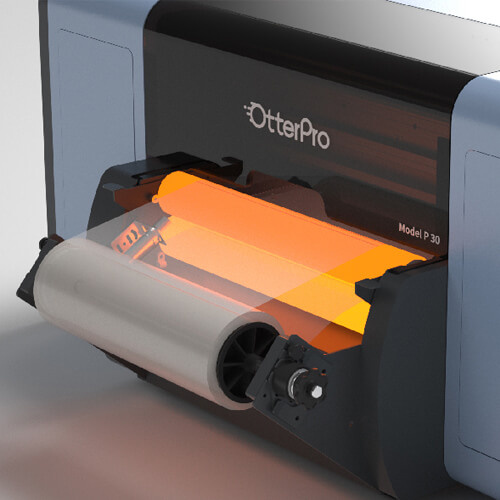

Adjustable heating rollers

Ensure precise and even heat distribution for a bubble-free lamination effect.

Compact and stationary

Compact design, no additional stand required, ideal for small batch production at home or workshop.

Adjustable vacuum suction platform

Thanks to the adjustable suction platform, the film adheres tightly to the platform, which guarantees a smooth printing process.

Built-in UV LED lights

Built-in ultraviolet lamps allow simultaneous printing and curing, and prints are ready for lamination.

Automatic circulation of white ink

This system, equipped with two peristaltic pumps, keeps the ink moving continuously, reducing the risk of clogging the white ink container and extending the life of the UV DTF printer.

Silenced rail guide

Improved guide rail guarantees high precision and stable operation with minimal noise.

Automatic system

Color consistency

High performance

Excellent color accuracy

This software significantly increases the productivity of DTF printing projects! It has a simple but powerful interface, allowing you to effortlessly master image editing and design. What's more, it supports automatic layout of multiple images and duplicate printing, which greatly increases productivity. Superior color printing ensures that DTF printers achieve "what you see" results!

Automatic stacking

Customized ICC profiles

Multilingual system

Examples of applications

Achieve stunning 3D embroidery effects, raised patterns and silicone-like texture all with one Puff DTF 3D printer! Elevate your business with realistic, eye-catching designs.

• Printhead: Epson i3200-U1 HD x 1 (8 colors)
• Nozzle resolution: 300NPI 600NPI
• Print speed:
• 960 x 600 dpi 4 passes - 1.54 m/ hr.
• 960 x 900 dpi 6 passes - 1.04 m/ hr.
• 960 x 1200 dpi 8 passes - 0.74 m/ hr.
• Power supply:220 V ± 10% 50 Hz-60 Hz
• Power: 4100W 5A-10A
• Work environment:
• Temperature: 15-30°C
• Humidity: 35-65% (non-condensing)
• Printer software: OtterPro C 30 UV DTF
• Language options (control panel):
• english
• chinese
• Design Software: Otterpro RIP
• Language options (software):
• english
• chinese
• french
• german
• italian
• polish
• portuguese
• spanish

• Ink type: UV DTF
• Ink color: K+C+M+Y+W+W+W+W
• Printing method: complete hierarchical printing using white ink, color and varnish
• Ink blending system: automatic for white ink
• Head maintenance: automatic cleaning, ink removal, humidification
• Heating system: adjustable heating rollers
• Connection method:Ethernet Gabit port (The computer must have a Gigabit Ethernet card)
• Inspection system: low ink level, no film
• System requirements:Windows 7 or later (macOS is not supported)
• Supported formats: BMP, JPG, PNG, TIFF, TIF, PDF
• Print thickness:0 - 3 mm
• Print width: 0-620 mm / 0-24.4 inches
• Dimensions: 96 x 98 x 45 cm
• Weight: 75 kg
• Warranty:The UV DTF printer comes with a 2-year limited warranty. In addition, parts that come into contact with ink, including ink cartridges, print heads, wiper blades and other consumable parts are not covered by the warranty.

Automatic circulation of white ink

Built-in peristaltic pump with moderate pressure and good gas seal protects the print head. Continuous circulation of white ink effectively prevents ink buildup and reduces the likelihood of printhead clogging.

Drying system

Equipped with five heating tubes and a larger drying area, the drying system provides even heating of the print for excellent results.

Receiving spool system

With the automatic winding system, you can free your hands at the final stage of production, achieving intelligent and safe film winding.

Built-in fans

After the printed film is burned in the oven, built-in fans speed up film cooling and improve productivity.

Printing width

With a maximum print width of 44.8 cm, the system is compatible with standard film widths available on the market, including 30 cm, 33 cm, 42 cm.

Powder shaking system

Can effectively improve melt powder utilization rate and minimize waste. In addition, it avoids the hassle of shaking the powder by hand, so the powder can be more evenly distributed on the film.

Control panel

User-friendly control panel allows you to manage speed, power and temperature of powder and drying system, providing a clearer picture of printing status.

Integrated purifier

Air purification system can automatically clean smoke and oil, improving well-being and productivity. (There is no need to change the cotton filter)

Three-stage heating system

Accelerate DTF ink drying on film to guarantee optimal image quality before powder application.

THK Mute Linear Guides

Increased operational stability with minimal noise.

Ink supply system

Clear ink markings avoid the hassle of pouring the wrong ink. Built-in alarm sensor reminds you to add ink on time, minimizing printer damage.

Automatic system

Color consistency

High performance

Excellent color accuracy

This software significantly increases the productivity of DTF printing projects! It has a simple but powerful interface, allowing you to effortlessly master image editing and design. What's more, it supports automatic layout of multiple images and duplicate printing, which greatly increases productivity. Superior color printing ensures that DTF printers achieve "what you see" results!
